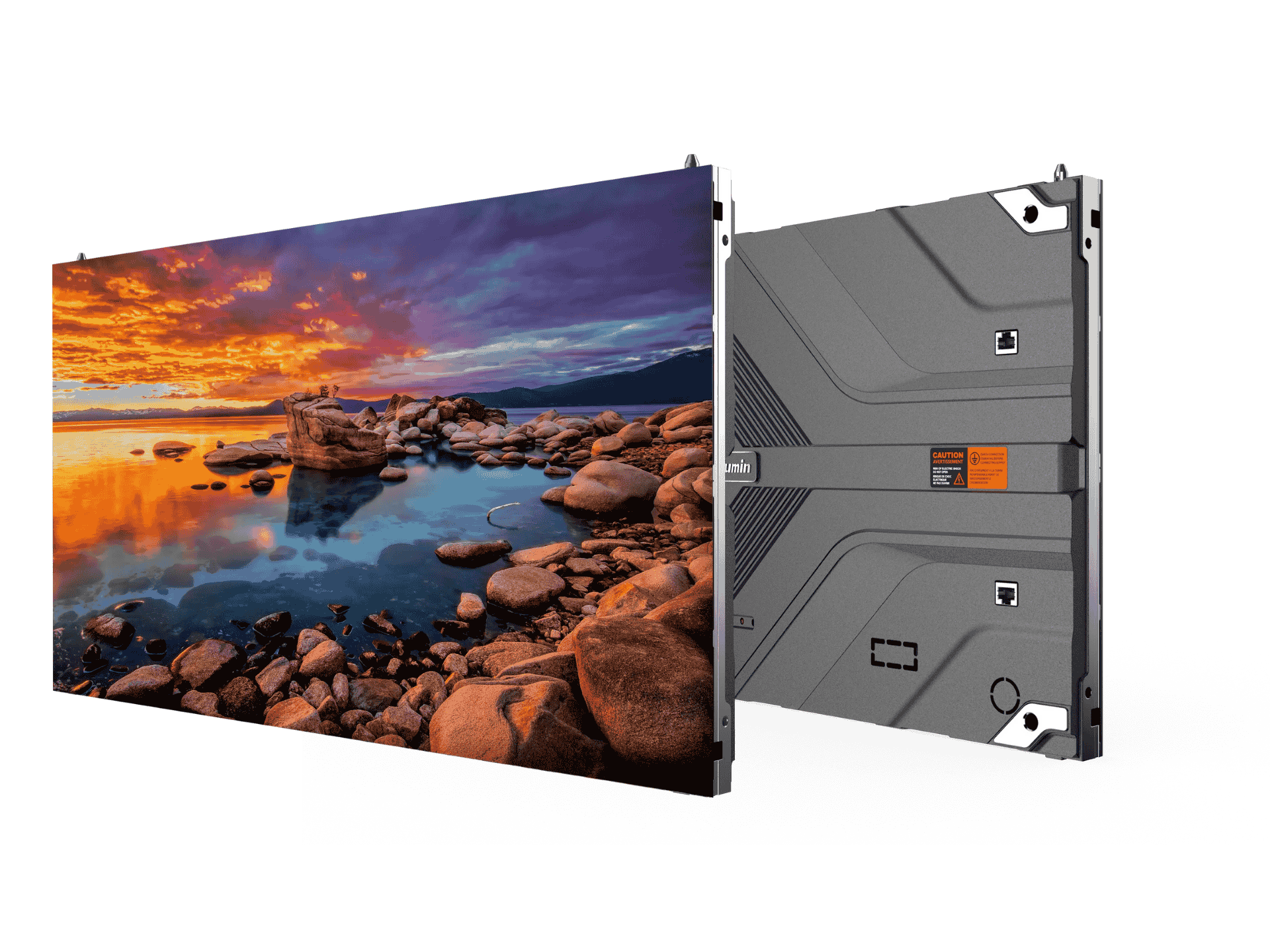

The Unilumin Umini W is an indoor COB LED wall. It comes in five pixel pitches from 0.78 to 1.88 mm, with 29.8 mm-deep cabinets in a 16:9 format.
Unilumin Umini W Series

Unilumin Umini W Series

Pixel pitch 0.78 mm, 0.94 mm, 1.25 mm, 1.56 mm or 1.88 mm

up to 800 cd/m²

Brightness

3,840 Hz

Refresh Rate

4.3 kg per cabinet

Weight

up to 12,000:1

Contrast

Features in Detail

Unilumin Umini W: LED wall from 0.78 mm pixel pitch

The Umini W is an LED wall by Unilumin for indoor spaces. It uses mini LEDs with COB (chip-on-board) technology, so the LED chips sit directly on the circuit board. Each cabinet has a 16:9 format and a 27-inch diagonal.

Pixel pitch is the distance between two pixels. The smaller it is, the closer viewers can sit without seeing individual dots. Unilumin recommends a viewing distance of more than 0.7 m at 0.78 mm and more than 1.8 m at 1.88 mm.

Specifications at a glance

  • Pixel pitch 0.78 mm, 0.94 mm, 1.25 mm, 1.56 mm or 1.88 mm
  • Cabinets 600 × 337.5 mm (width × height), 29.8 mm deep, 4.3 kg
  • Brightness 600 to 800 cd/m², contrast 10,000:1 to 12,000:1 (depending on brightness), refresh rate 3,840 Hz
  • Power consumption per cabinet typically 24 to 45 W, maximum 48 to 72 W
  • IP50 rating (dust-protected, no water protection, so for dry indoor spaces), front service access, fanless

What Unilumin highlights

  • Contrast: Unilumin credits it to two technologies, EBL+ and multi-layer optical processing.
  • Eye protection: According to Unilumin, the series has received a TÜV award. Unilumin also says it protects the eyes from blue light.
  • Energy use: Common cathode technology means the Umini W uses less energy than conventional products, according to Unilumin.
  • Variant: The series also comes as U-natural with a textured screen, which Unilumin says reflects very little.

You'll find the key specifications in the table on this page. Source: Unilumin Germany, datasheet V1.1, dated 12 September 2025. We'll help you choose the right pixel pitch for your room and viewing distance.

Technical Specifications

Pixel Pitch

0.78 mm, 0.94 mm, 1.25 mm, 1.56 mm or 1.88 mm

Dimensions (cabinet)

600 × 337.5 × 29.8 mm

Brightness

600 to 800 cd/m²

Contrast

10,000:1 to 12,000:1 (depending on brightness)

LED Type

Mini LED, Flip Chip COB with common cathode

Refresh Rate

3,840 Hz

Operating Voltage

100 to 240 V AC, 50/60 Hz

Protection Class

IP50

Resolution

320 × 180 to 768 × 432 px per cabinet 600 × 337.5 mm (768 × 432 px at a pixel pitch of 0.78 mm)

Viewing Angle H

170°

Viewing Angle V

160°

Weight

4.3 kg per cabinet 600 × 337.5 mm

Service Access

front

Module Dimensions

150 × 168.75 mm

Certifications

Signal Inputs

DVI, HDMI, VGA, SDI, DP, AV, S-Video and more (via the controller)

Operating Temperature

−10 °C to +45 °C
