Infiled EZmk2 Serie

kampro

hero img
1.95 – 2.6mm

Die EZmk2-Serie ist ein leichtes Indoor-Rental-LED-Display mit feinem Pixelabstand, 7.680Hz Refresh Rate und nur 5,9kg Gewicht pro Panel.

Uslim II 1.5 Specifications

Zoom Image
Thumb 1 Thumb 2 Thumb 3 Thumb 4 Thumb 5 Thumb 6
Pixelabstand
1.95, 2.6mm
Abmessungen (Kabinett)
500 × 500mm
Helligkeit
1.000 – 1.200 nits
Scanrate
Kontrastverhältnis
LED-Typ
3-in-1 SMD
Bildwiederholrate
7.680Hz
Betriebsspannung
100-240V AC 50-60Hz
Schutzklasse (IP)
IP30
Auflösung
Betrachtungswinkel (H)
160°
Betrachtungswinkel (V)
160°
Gewicht
5,9kg
Wartungszugang
Modul-Abmessungen
Max. Leistungsaufnahme
Typ. Leistungsaufnahme
Pixeldichte
Zertifizierungen
Signalanschlüsse
Betriebstemperatur

Entdecken Sie die LED-Features im Detail.Kampro LED features.

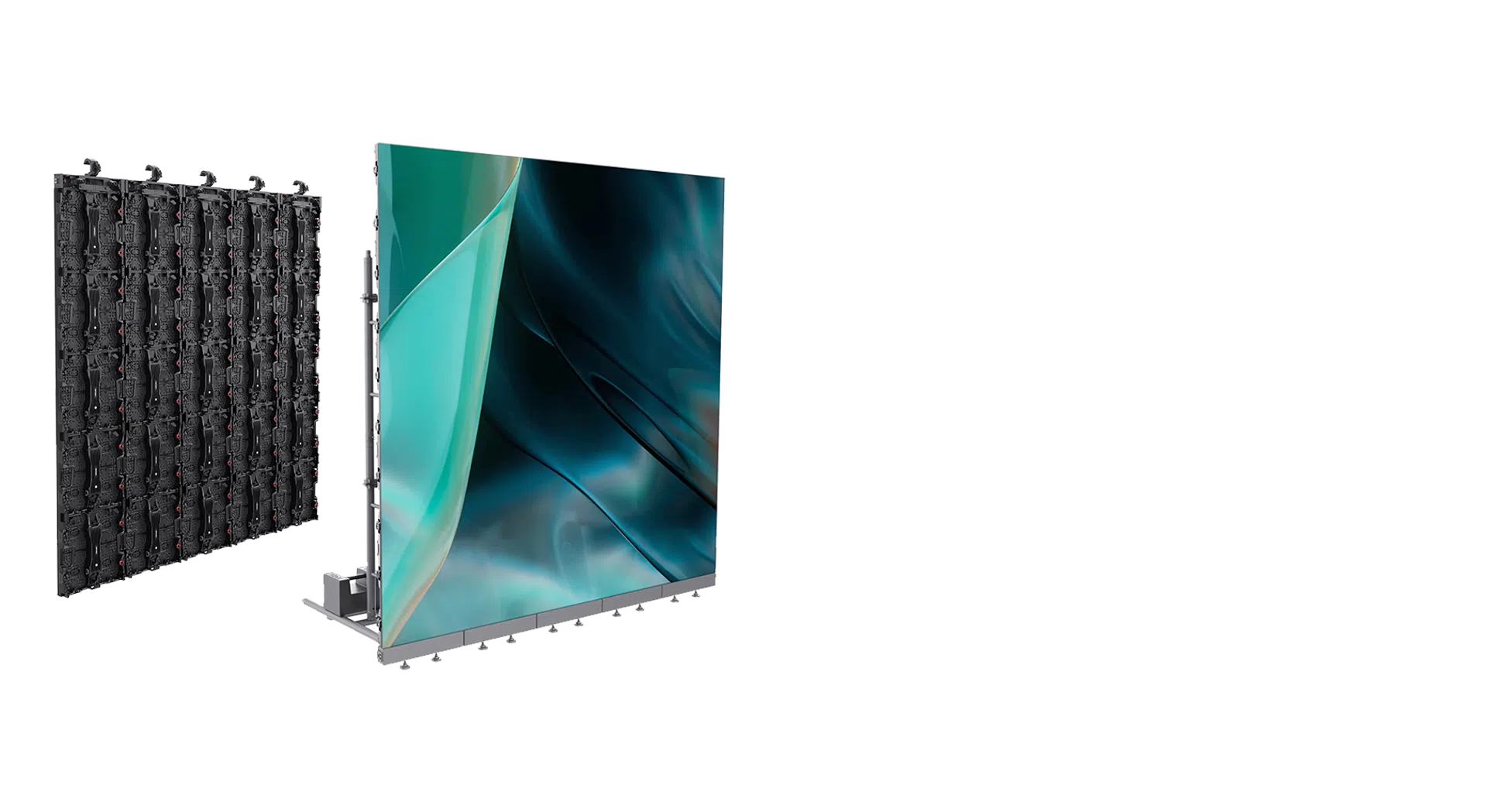

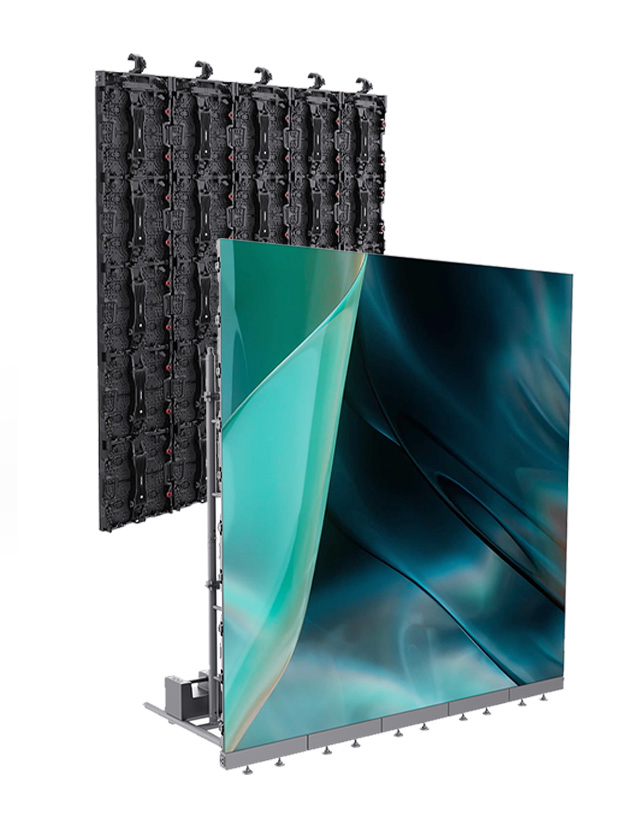

EZmk2 – Flexible Indoor-Mietlösung für kreative Events

Die EZmk2 ist eine leichte und flexible Miet-LED-Displaylösung für Indoor-Anwendungen mit Pixel-Pitches von 1,9 und 2,6mm. Sie bietet eine Helligkeit von 1000–1200 Nits und ermöglicht dank ihrer kompakten Abmessungen und des innovativen Quick-Lock-Systems die Realisierung von kreativen Formen und gekrümmten Installationen für Messen, Konferenzen und Events.

Technische Spezifikationen

  • Pixel-Pitch: 1,9mm und 2,6mm für scharfe Bildqualität und Detailtreue.
  • Schrank-Abmessungen: 500×500×75,5mm mit extrem leichtem Gewicht für einfache Handhabung.
  • Helligkeit: 1000–1200 Nits mit optimaler Sichtbarkeit in Indoor-Umgebungen.
  • Aktualisierungsrate: 7.680Hz mit 16-Bit-Graustufen und 10.000:1 Kontrastverhältnis.

Robustheit und Installation

  • ArmorLED + SolidSkin Schutz: Verstärkte Oberflächenschicht gegen Beschädigungen und Umwelteinflüsse.
  • Gewichtskapazität: Unterstützung von bis zu 18 Schränken für große Installationen.
  • Quick-Lock-System: Schnelle und sichere Montage ohne komplexe Verkabelung.

Anwendungsbereiche

  • Messen und Konferenzen: Perfekt für temporäre oder mobile Präsentationen.
  • Kreative Events: Unterstützung von kreativen Formen und Installationen für innovative Designkonzepte.
  • Flexible Raumgestaltung: Einfache Anpassung an verschiedene Räume und Konfigurationen.

Die Highlights auf einen Blick.

Highlights Image
Highlights Image
Highlights Image
